Product Description
The ESCH forklift battery charger typically refers to an industrial charger used to replenish the energy in forklift batteries. These chargers are often designed for heavy-duty environments, aiming to ensure optimal performance, efficiency, and longevity of forklift batteries.
Product Catalog
| Model |
ESCH 80V 65A |
ESCH 80V 130A |
| Overall dimension |
497*242.7*411mm |
| Maximum output current(A) |
65 |
130 |
| Output power(W) |
6000 |
13000 |
| Input Power Supply |
380V土15% Three phases Four-wire |
380V土15% Three phases Four-wire |
| Maximum Output Voltage(VDC) |
100 |
100 |
| Compatible Battery Specification |
|
80V 400-600Ah lithium battery |
| Maximum Efficiency |
≥94% |
≥94% |
| Output Voltage Regulation Accuracy |
±0.5% |
±0.5% |
| Output Current Regulation Accuracy |
±1% |
±1% |
| Operating Temperature |
-40°C-50℃ |
-40°C-50℃ |
| Vibration Resistance Grade |
|
SAEJ1378 |
| Cooling Method |
Air Cooling |
Air Cooling |
| Over Temperature Protection |
70℃ |
70℃ |
| Input Overvoltage Protection (VAC) |
＞530±10V |
＞530±10V |
| Input Undervoltage Protection (VAC) |
＜250±10V |
＜250±10V |
| Output Overvoltage Protection (VDC) |
105±5 |
105±5 |
| Output Overcurrent Protection (A) |
|
>110% of Max Charging Current |
| Output Short Circuit Protection |
When output short-circuited, the charger shuts down automatically; it will self-recover after fault removal. |
| Battery Reverse Polarity Protection |
None |
Key Features
- Fully automatic lithium battery charger, strictly follows the lithium battery charging characteristic curve during the whole charging process.
- Built-in active Power Factor Correction (PFC) inside the charger achieves zero pollution to the power grid and prevents high-current impact on the grid.
- Adopting high-frequency soft-switching LLC power technology, the overall efficiency reaches 93%, while traditional chargers only achieve 50%-60%.
- The module is equipped with comprehensive protection functions, including input over/under voltage, input phase loss, output overcurrent, output over/under voltage, output short circuit, output isolation protection, and module overheating protection.
- With optimized thermal design for more uniform heat distribution; the internal circuit board is treated with shockproof, moisture-proof and dust-proof technology to improve operational reliability.
- This series is equipped with digital display function, which can real-time show charging current, voltage and charging time online.
- The charger adopts internal modular design, featuring wide input voltage range and high charging power.
- Fast charging speed, the full charging time only takes 2-3 hours.

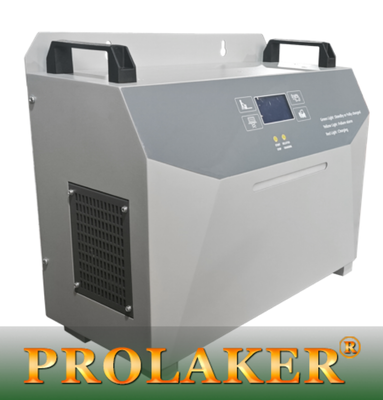

Product Display
